Non-Powered Transfer Cars provide a manual method of moving loads between parallel conveyor lanes. Transfer cars can either be confined to a track with definitive end stops to locate position, or be fitted with swivel and rigid casters for a free moving method of transporting unit loads. Powered Transfer Cars fulfill the same process, but they are provided with a powered conveying system.
Application:
• Convey loads of Cartons, Totes, Fixtures, Cardboard Boxes
• Non-Contact Accumulation
• Unitized
• Pallet loads when bottom boards are perpendicular to the rollers
• Pallet loads when bottom boards are parallel to the rollers
• Side loading/unloading
• Accumulation of loads
Where it Works:
• Warehousing & Distribution
• Manufacturing
• Order Fulfillment
• Aerospace
• Government Military & Agency
• Automotive
• Parcel Handling
• Appliance
• Cabinetry & Furniture
• Food & Beverage
TC1916 – TRANSFER CAR WITH 1.90″ DIAMETER 16 GA. ROLLERS
Model TC1916 medium duty manual transfer car allow product to be moved from one lane to another parallel lane within a system. These units are fixed to a set of tracks which facilitate easy movement and positioning in front on the lanes to be loaded or unloaded from the car.
TC1912 – TRANSFER CAR WITH 1.90″ DIAMETER 12 GA. ROLLERS
Model TC1912 medium duty manual transfer car allow product to be moved from one lane to another parallel lane within a system. These units are fixed to a set of tracks which facilitate easy movement and positioning in front on the lanes to be loaded or unloaded from the car.
TC2511 – TRANSFER CAR WITH 2.50″ DIAMETER 11 GA. ROLLERS
Model TC2511 heavy duty manual transfer car allow product to be moved from one lane to another parallel lane within a system. These units are fixed to a set of tracks which facilitate easy movement and positioning in front on the lanes to be loaded or unloaded from the car.
PTTC19 – PASS THRU TRANSFER CAR WITH 1.90″ DIAMETER 16 GA. ROLLERS
Model PTTC19 is a medium duty manual transfer car and is typically used to transfer products across an aisle way in parallel conveying lines.
PTTC25 – PASS THRU TRANSFER CAR WITH 2.50″ DIAMETER 11 GA. ROLLERS
Model PTTC25 is a heavy duty manual transfer car and is typically used to transfer products across an aisle way in parallel conveying lines.

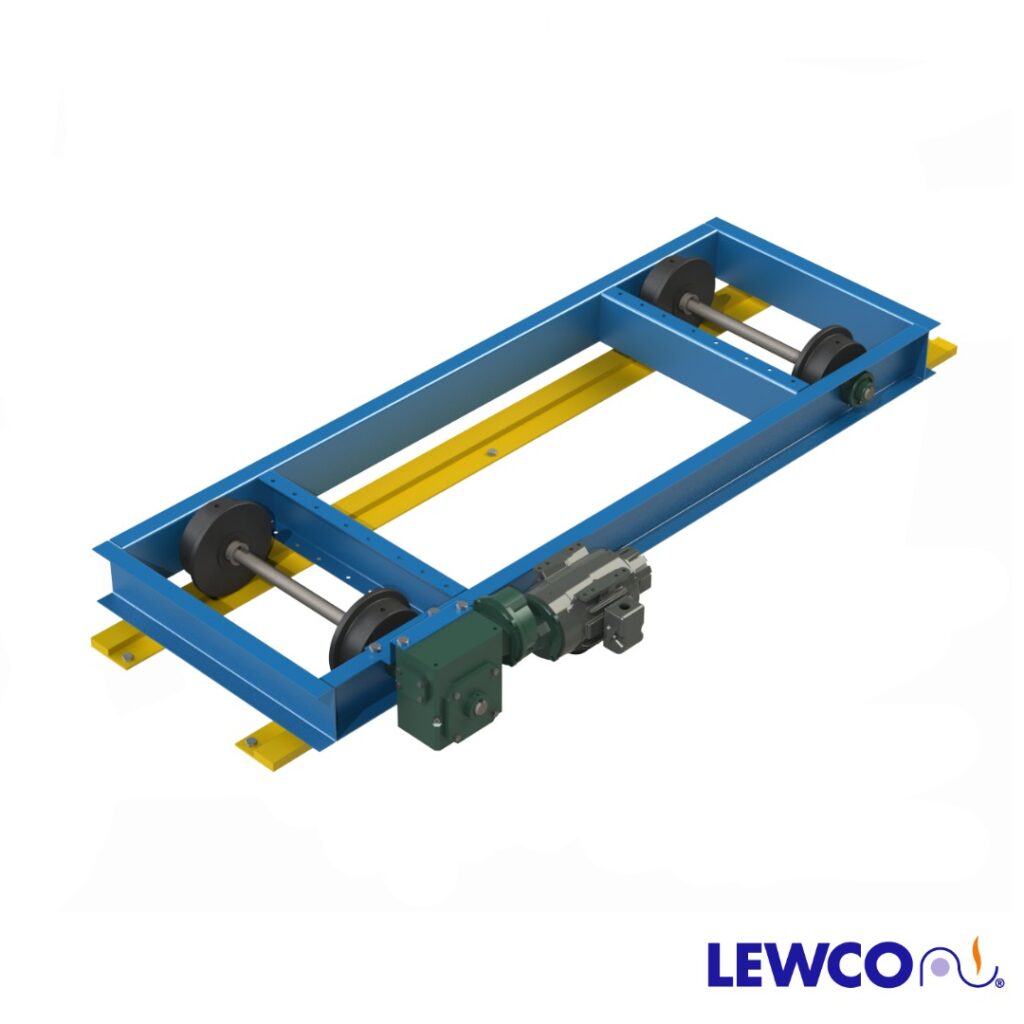

TCP1912 – POWERED, TRANSFER CAR, 1.90″ DIAMETER 12 GA. ROLLERS
Model TCP1912 is a powered transfer car with medium duty powered conveying surface. Typically used to transfer products requiring tight roller centers from one lane to another parallel lane within a system.
TCP1909 – POWERED, TRANSFER CAR, 1.90″ DIAMETER 9 GA. ROLLERS
Model TCP1909 is a powered transfer car with medium duty powered conveying surface. Typically used to transfer products requiring tight roller centers from one lane to another parallel lane within a system.
TCP2511 – POWERED, TRANSFER CAR, 2.50″ DIAMETER 11 GA. ROLLERS
Model TCP2511 is a powered transfer car with heavy duty powered conveying surface. Typically used to transfer products from one lane to another parallel lane within a system.
TCP2607 – POWERED, TRANSFER CAR, 2.62″ DIAMETER 7 GA. ROLLERS
Model TCP2511 is a powered transfer car with heavy duty powered conveying surface. Typically used to transfer products from one lane to another parallel lane within a system.
PTTCP1912 – POWERED, PASS THRU TRAVEL, 1.90″ DIAMETER 12 GA. ROLLERS
Model PTTCP1912 is a powered transfer car with medium duty powered conveying surface. Typically used to transfer products requiring tight roller centers across an aisle way.
PTTCP1909 – POWERED, PASS THRU TRAVEL, 1.90″ DIAMETER 9 GA. ROLLERS
Model PTTCP1909 is a powered transfer car with medium duty powered conveying surface. Typically used to transfer products requiring tight roller centers across an aisle way.
PTTCP2511 – POWERED, PASS THRU TRAVEL, 2.50″ DIAMETER 11 GA. ROLLERS
Model PTTCP2511 is a powered transfer car with heavy duty powered conveying surface. Typically used to transfer products across an aisle way.
PTTCP2607 – POWERED, PASS THRU TRAVEL, 2.62″ DIAMETER 7 GA. ROLLERS
Model PTTCP2607 is a powered transfer car with heavy duty powered conveying surface. Typically used to transfer products across an aisle way.
Non-Standard Features
