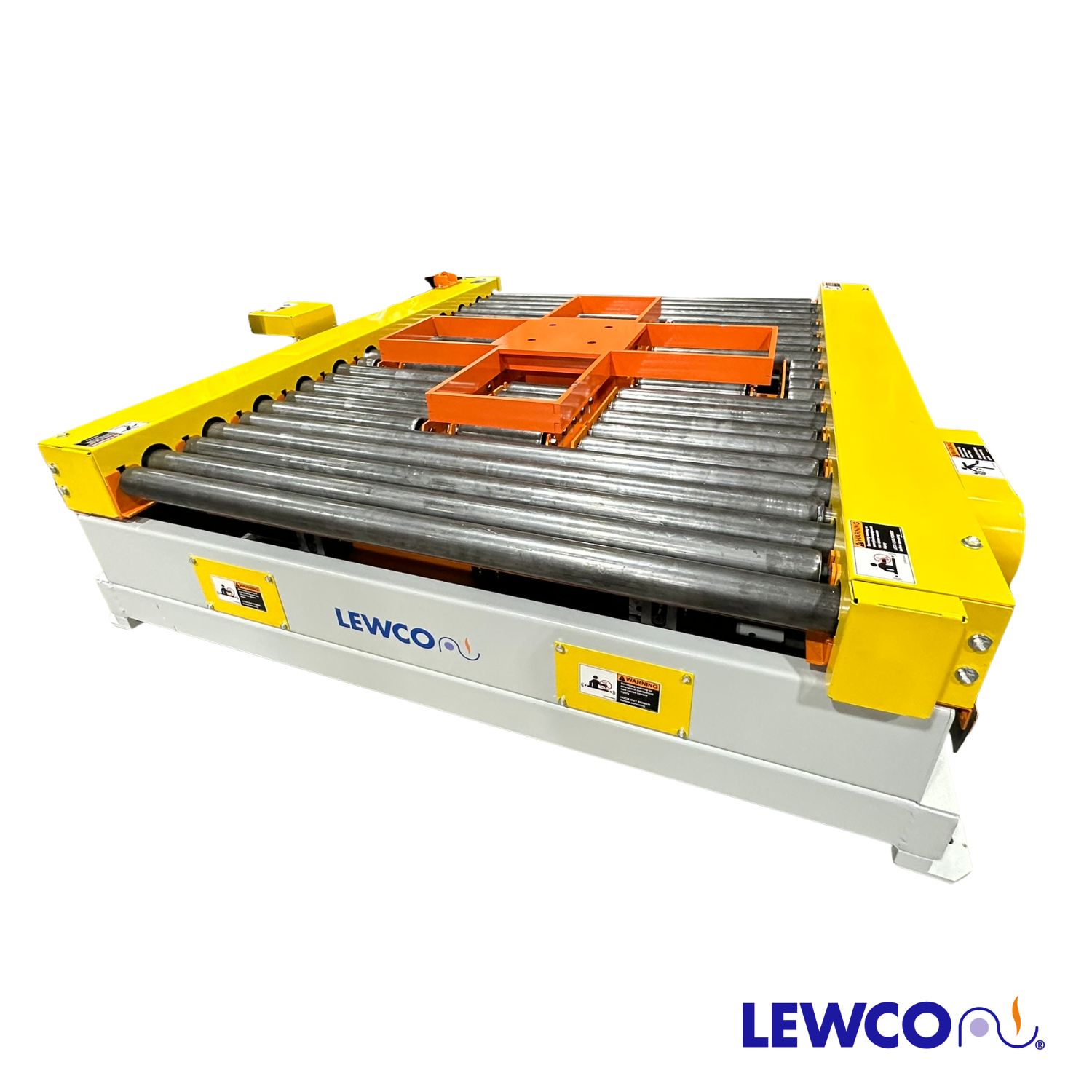

Model TCP2511 is a powered transfer car with heavy duty powered conveying surface. Typically used to transfer products from one lane to another parallel lane within a system.
EFFECTIVE WIDTH: 36″, 42″, 48″, 51″, 54″, 60″
LENGTH: 60″ – 120″
ELEVATION: 12″ – 48″
SPEED: 30, 45, 60 FPM
ROLLER CENTERS: 4.5″, 6″
ROLLERS: TCP2511 Roller – 2.50″ diameter, 11ga wall tube. TCP2607 – 2.625″ diameter, 7ga wall tube. All rollers with 11/16” hex cold rolled steel axles, spring retained. Standard bearings are precision, grease packed bearings.
MOTOR: 1 HP.
CONVEYOR: Standard is chain driven live roller, 1 HP motor, 10 – 60 FPM speed, 6″ channel rail both sides with rollers set low in the frame. Optional frame includes structural firstname.lastname@example.org# rail both sides with rollers set low.
ROLLER SURFACE: Standard roller surface is carbon steel. Optional roller covers for 2.5″ rollers includes galvanized roller tube and polyurethane roller sleeves.
FRAME FINISH: Standard finish is OSHA safety blue powder. Optional colors include green, beige, gray, orange, black and yellow.
