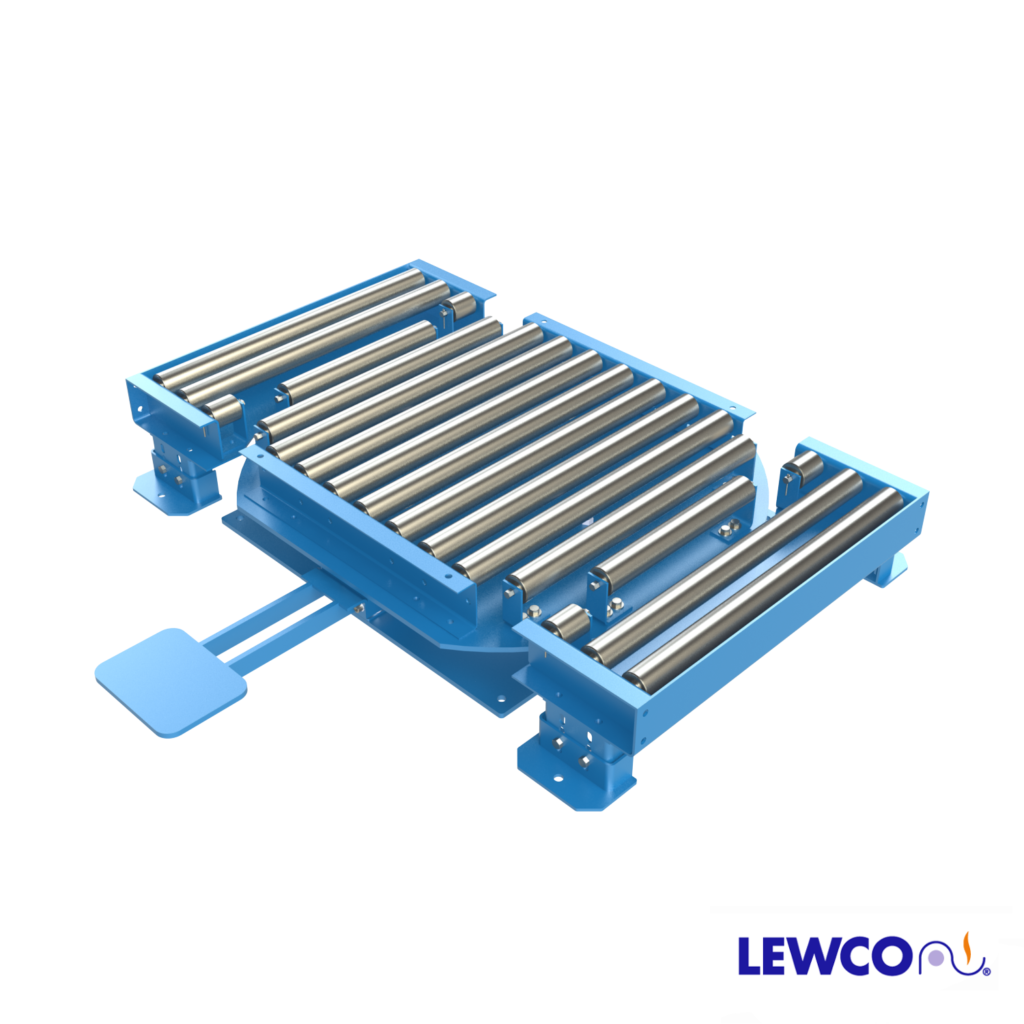

Turntable conveyors rotate unit loads to change the direction of travel while maintaining product orientation. They can also be used to reverse the orientation of a product or allow a pass through depending on application requirements.
BETWEEN FRAMES: 27″ and 33″
LENGTH: 24″ – 48″
ROLLER CENTERS: 4″
HEIGHT ELEVATION: 8″ – 10′. For elevations above 10″ see model NPTG19.
ROLLERS: 1.9” diameter, 12ga. mild steel tube with 7/16′ hex axle, spring retained, with precision, greased packed bearings.
- Optional:
- 9ga. mild steel tube
- Cotter pin retained axle
- Galvanized roller tube
- Polyurethane roller sleeve
ROTATION: 360 degrees, detented at 90 degree increments.
CONSTRUCTION: Formed 8ga. channel rails with rollers set 1/4″ high. Turntable is 3/8″ plate with a slewing ring center bearing.
TRANSITION SELECTIONS: Optional transition selections can be added. See drawings for additional detail.
TURNTABLE COLOR: OSHA safety blue powder (RAL 5017). All guarding is yellow (RAL 1023) and moving parts are bright red orange (RAL 2008). Click HERE to see other standard color options. Custom colors also available.
ADDITIONAL OPTIONS:
- Guardrail
- End Stops
- Custom sizes and features available. Please consult a LEWCO Applications Engineer for more information.
