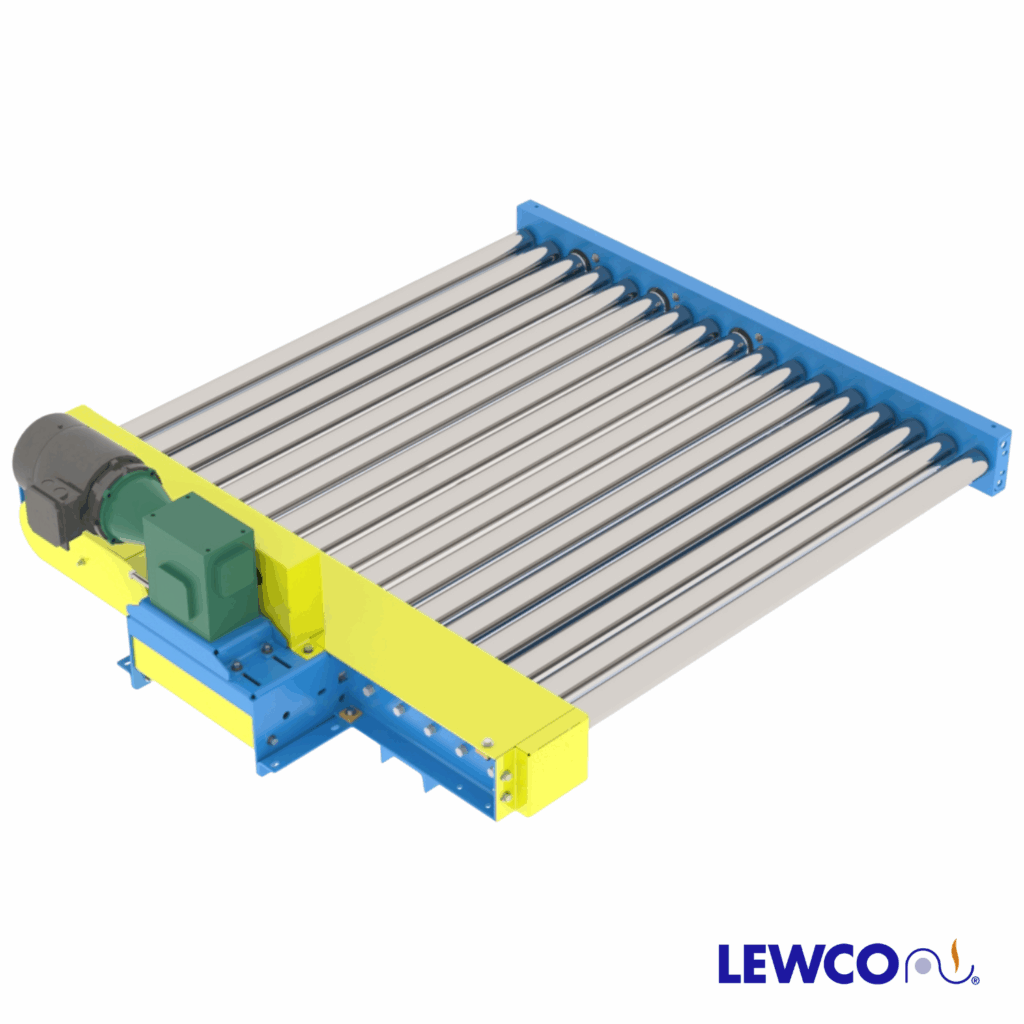

Model: CDLRW25 – Chain Driven Roller Conveyor, Wide Chain Box, 2.5″ DIA. x 11 GA.

PRODUCT DRAWING OWNERS MANUAL REQUEST A QUOTE

EFFECTIVE WIDTH: 6″ to 64″

LENGTH: 36″ to 600″

HEIGHT ELEVATION: 7″ to 120″

ROLLER CENTERS: 3.375″. For other spacing see model CDLR25

ROLLERS: 2.50″ dia. x 11ga. mild steel tube with 11/16″ hex axle, spring retained, with precision, greased packed ABEC bearings, and #40 sprockets. Standard roller surface is carbon steel. Roller options include: cotter pin retained axle, galvanized roller tube, polyurethane roller sleeves, and Ultrex accumulation sleeves. Click the following link for additional roller details.

FRAME CONSTRUCTION: Standard frame includes structural channel 6″x8.2# on chain box side & 4″x5.4# on opposite side with rollers set 1/4″ high. 10ga. Chain Box.

Other frame options include:

  • Structural channel 6″x8.2# with rollers set 1-3/4″ low (welded frame).
  • Formed 8ga. channel, 6″ on chain box side & 4″ on opposite side with rollers set 1/4″ high (bolted frame).
  • Formed 6″x8ga. channel with rollers set 1-3/4″ low (bolted frame).

DRIVE LOCATION: Standard drive is mounted high near center of conveyor length on chain box side. Optional drives include drive mounted low or drive mounted below and within frame, near center.

MOTOR: 1/2 HP to 2 HP, totally enclosed fan cooled inverter-duty motor. Optional power off brake motor or non-inverter-duty motor. Standard voltage is 230/460V/ 3Ph/ 60Hz.  Optional voltages include: 115V/1Ph /60Hz,  208V/1Ph/ 60Hz,  230V/ 1Ph/ 60Hz  and  575V/ 3Ph/ 60Hz.  24VDC Motorized driven roller (MDR) also available.

SPEED: Available in fixed speeds from 10 – 150 FPM (feet per minute)

CONVEYOR COLOR: Powder coated blue (RAL 5017). All guarding is yellow (RAL 1023) and moving parts are bright red orange (RAL 2008). Click HERE to see other standard color options. Custom colors also available.

As standard, controls are not included (provided by others).



Control Options:

  • Variable Speed Controller
  • Combination motor starter with disconnect, fixed speed
  • Combination motor starter with disconnect, variable speed
  • PLC (programmable logic controller) with HMI (human machine interface)



Optional:

Load Capacity (LBS) @ 60 FPM 4.5″ or 6″ Roller Centers, 20 FT Length
HP Width
12″ 36″ 60″
 1/2 1550 1300 1050
 3/4 2500 2250 2000
1 4100 3850 3600
1 1/2 6300 6050 5850
2 10300 10100 9850
Load Capacity (LBS) @ 30 FPM 4.5″ or 6″ Roller Centers, 20 FT Length
HP Width
12″ 36″ 60″
 1/2 4150 3900 3650
 3/4 6350 6100 5850
1 10350 10100 9850
1 1/2 15650 15450 15200
2 20000 20000 20000
Maximum Unit Load Per Linear Foot of Conveyor is 1000 LBS – Not to exceed capacity above.

Options:



Supports:

  • No floor supports
  • 4″ structural or formed channel supports w/ jack bolt, adjustable 1″ to 2″ (model SPSJ4 or SPJ4)
  • 5″ structural or formed channel supports w/ jack bolt, adjustable 1″ to 2″ (model SPSJ5 or SPJ5)
  • 6″ structural or formed channel supports w/ jack bolt, adjustable 1″ to 2″ (model SPSJ6 or SPJ6)
  • Supports can be provided with optional adjustable top plate for conveyors on an incline or decline.
  • Floor supports can be provided on 5′ or 10′ nominal centers. It is recommended that conveyors wider than 32″ have supports on 5′ centers. It is also recommended that conveyors with height elevations above 35″ use knee braces (model KB18)
