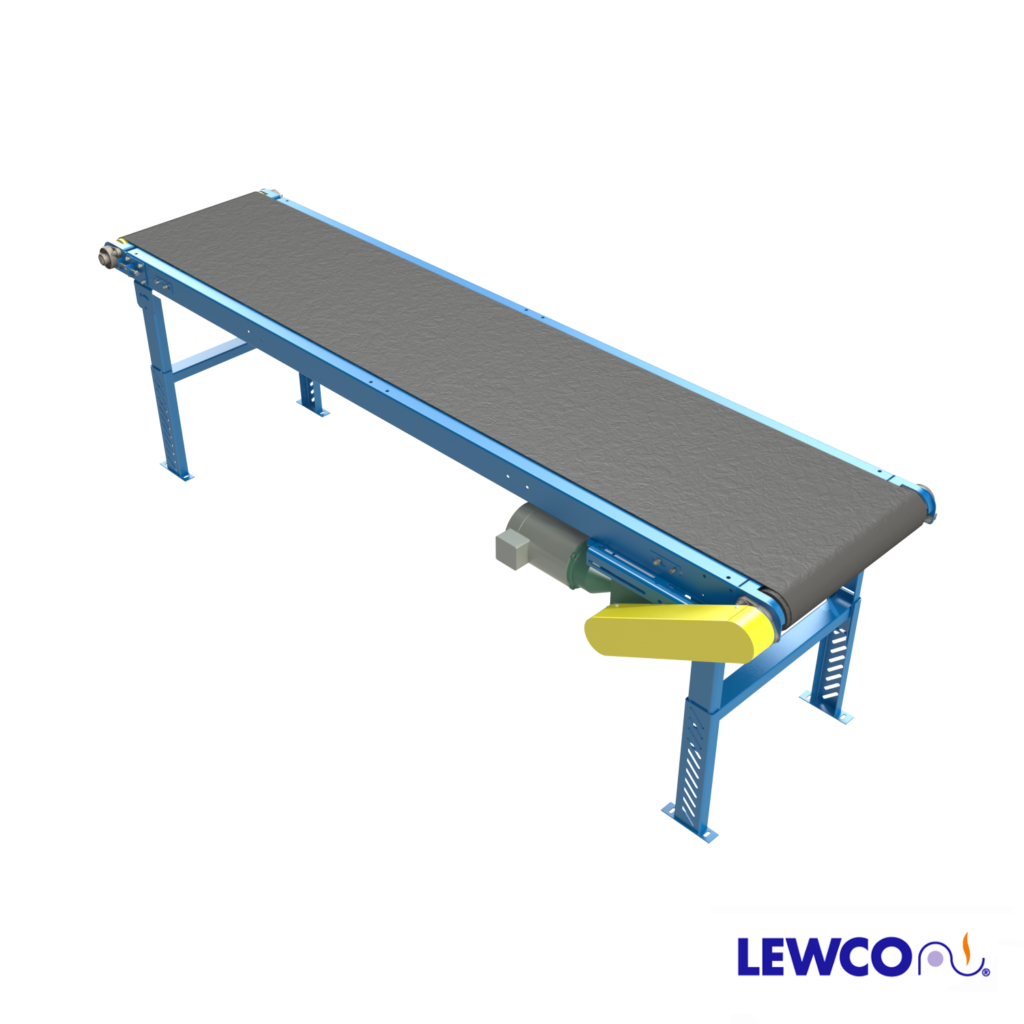

40SB – LOW PROFILE SLIDER BED

BELT WIDTH: 12″, 18″, 24″, 30″, 36″

LENGTH: 48″ to 600″

BEGINNING HEIGHT ELEVATION:  7″ to 60″

ENDING HEIGHT ELEVATION: 7″ to 60″

BELT: Trackmate PVC120 EMB embossed cover with clipper lacing. Optional belts include PVC120 smooth top, PVC150 rough top, PVC120 black friction both sides, white PVC food grade, Thermoplastic polyurethane (TPU) covered belt, PVC longitudinal groove, or no belt. V-Guided Belt or Troughed Belts design also available.

DRIVE LOCATION: End drive, bottom right hand. Optional drive locations include end drive, bottom left hand; side drive right or left hand; or center drive right or left hand. Note: Center drive is standard for conveyors that reverse

MOTOR: 1/2 HP to 1-1/2 HP, totally enclosed fan cooled motor. Optional inverter duty or power off brake motor also available. Standard voltage is 230/460 3Ph / 60Hz. Optional voltages include 115V/ 1PH/ 60Hz, 208V/ 1Ph/ 60Hz, 230V/ 1Ph/ 60Hz, 575V/ 3Ph/ 60Hz, or 90V DC.

SPEED: Available in fixed speeds from 15 to 300 FPM (feet per minute). Reverse capability optional.

CONVEYOR COLOR: Powder coated blue (RAL 5017). All guarding is yellow (RAL 1023) and moving parts are bright red orange( RAL 2008). Click HERE to see other standard color options. Custom colors also available.



Conveyor Control Options:

  • Variable Speed Controller
  • Combination motor starter with disconnect, fixed speed
  • Combination motor starter with disconnect, variable speed
  • PLC (programmable logic controller) with HMI (human machine interface)
  • No controls (provided by others)

Optional

  • Photo eye sensor(s)
  • Emergency Stop button(s)
Load Capacity @ 60 FPM (LBS)
HP Width
12″ 18″ 24″ 30″ 36″
 1/2 290 285 280 270 265
 3/4 445 440 435 425 420
1 600 590 585 580 570
1 1/2 900 895 885 880 870
Load Capacity @ 30 FPM (LBS)
HP Width
12″ 18″ 24″ 30″ 36″
 1/2 600 595 590 580 575
 3/4 910 900 895 890 880
1 1215 1205 1200 1195 1185
1 1/2 1820 1810 1805 1800
MAXIMUM LOAD PER LINEAR FOOT OF CONVEYOR

IS 75 POUNDS – NOT TO EXCEED CAPACITY ABOVE





Supports:

  • No floor supports
  • Adjustable height supports (model SPH or SPL)
  • Adjustable height supports on 5″ casters (model SPHC5) with leg-ties
  • 4″ formed channel jack bolt supports, adjustable 1 to 2″ (model SPJ4 or SPJ4A)
  • Ceiling support brackets
  • Floor supports can be provided on 5′ or 10′ centers. It is recommended that conveyors wider than 32″ have supports on 5′ centers. It is also recommended that conveyors with height elevations above 35″ use knee braces (model KB17)

Guardrail:

  • 2″ to 12″ high
  • Bolts on one or both sides of conveyor frame
  • Models GFS12 or GFS8
