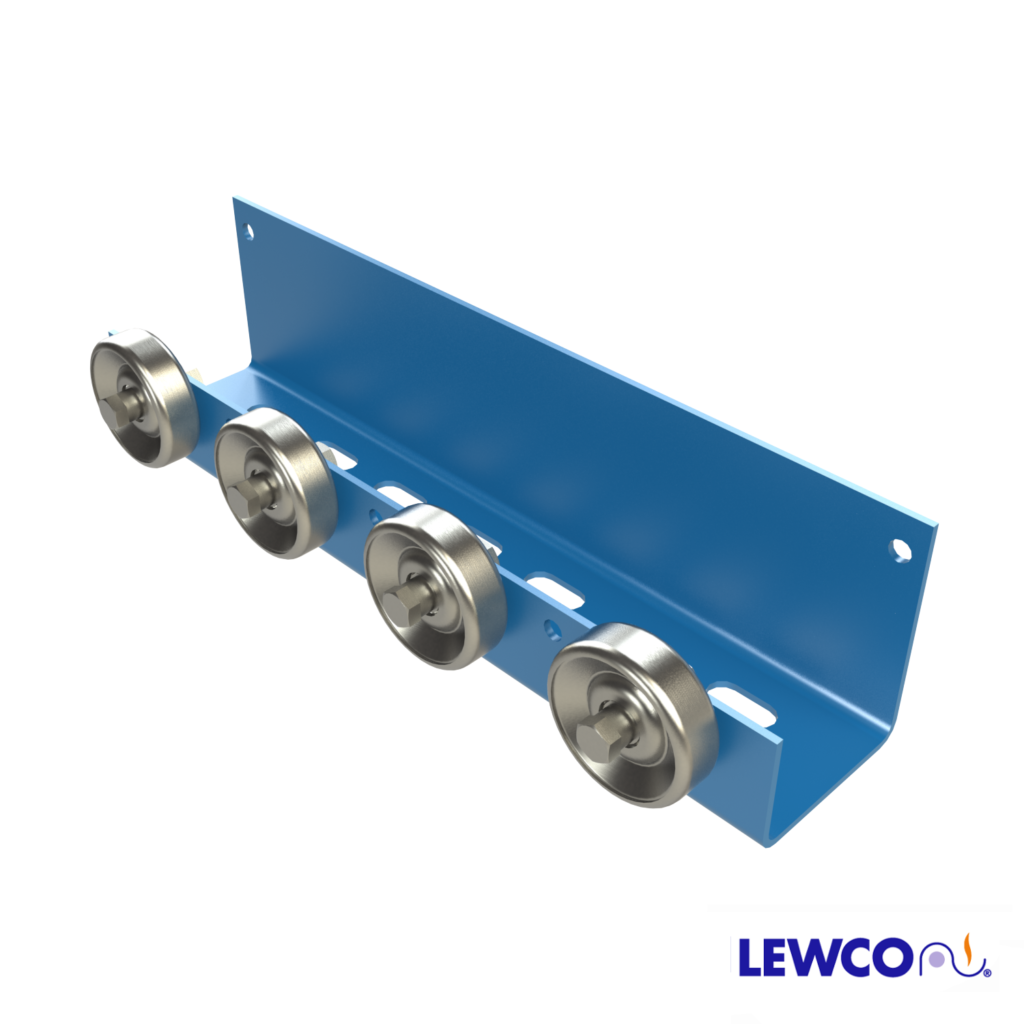

Wheel Rail Conveyors provide an economical means of conveying products in flow racks and other gravity applications. WRH is heavy duty rail that can be utilized as a tote, box, or carton rail. The shape of the frame provides an integrated guardrail for load containment, while the staggered wheel pattern conveys irregularly shaped loads. The last wheel can be mounted higher to provide an end stop.
LENGTH: 12″ – 120″ WRG, WRH, WRL. 24″ – 120″ WRK.
WHEEL CENTERS: 2″, 3″ WRG. 1-1/2″, 2″ WRH, WRK, WRL.
WHEEL: Standard 1.9″ diameter steel, oiled, 75 lbs dynamic load. Optional
wheels available with 100 lbs or 2000 lbs dynamic load.
WHEEL SURFACE: Standard zinc plated. Optional orange urethane.
FRAME: Standard steel formed channel, 2-1/2″ x 3″ x 12ga for WRG, WRH. Steel formed angle 2-1/8″ x 1-5/16″ x 12ga for WRK. Steel formed channel 2-1/2″ x 3-1/2″ x 12ga for WRL.
END STOP: Standard no end stop included. Optional end stops includes
anti-backup stop and pallet stop. Wheel end stop is available for WRG, WRH,
CONVEYOR COLOR: OSHA safety blue powder (RAL 5017). All guarding is yellow (RAL 1023) and moving parts are bright red orange (RAL 2008). Optional colors available.
