SPM model medium duty, stationary ”H” style for supports are easily adjusted and anchored. These supports feature a top pivot plate for applications requiring the conveyor to be set on an angle.

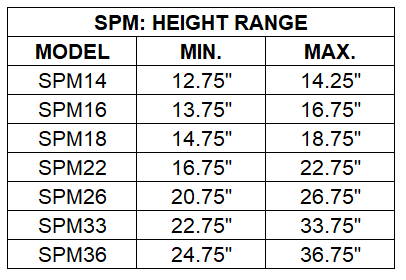

SPM – MEDIUM DUTY SUPPORT



OVERALL WIDTH: 7″ – 54″

CONSTRUCTION: Formed steel inner and outer channels, 12ga; Bolted angle crosstie, 12ga; Base plate, 12ga.

TOP PLATE: Standard 8ga pivot top plate is available where adjustable pitch is required.

SUPPORT COLOR: OSHA safety blue powder (RAL 5017). All guarding is yellow (RAL 1023) and moving parts are bright red orange (RAL 2008). Optional colors available.
