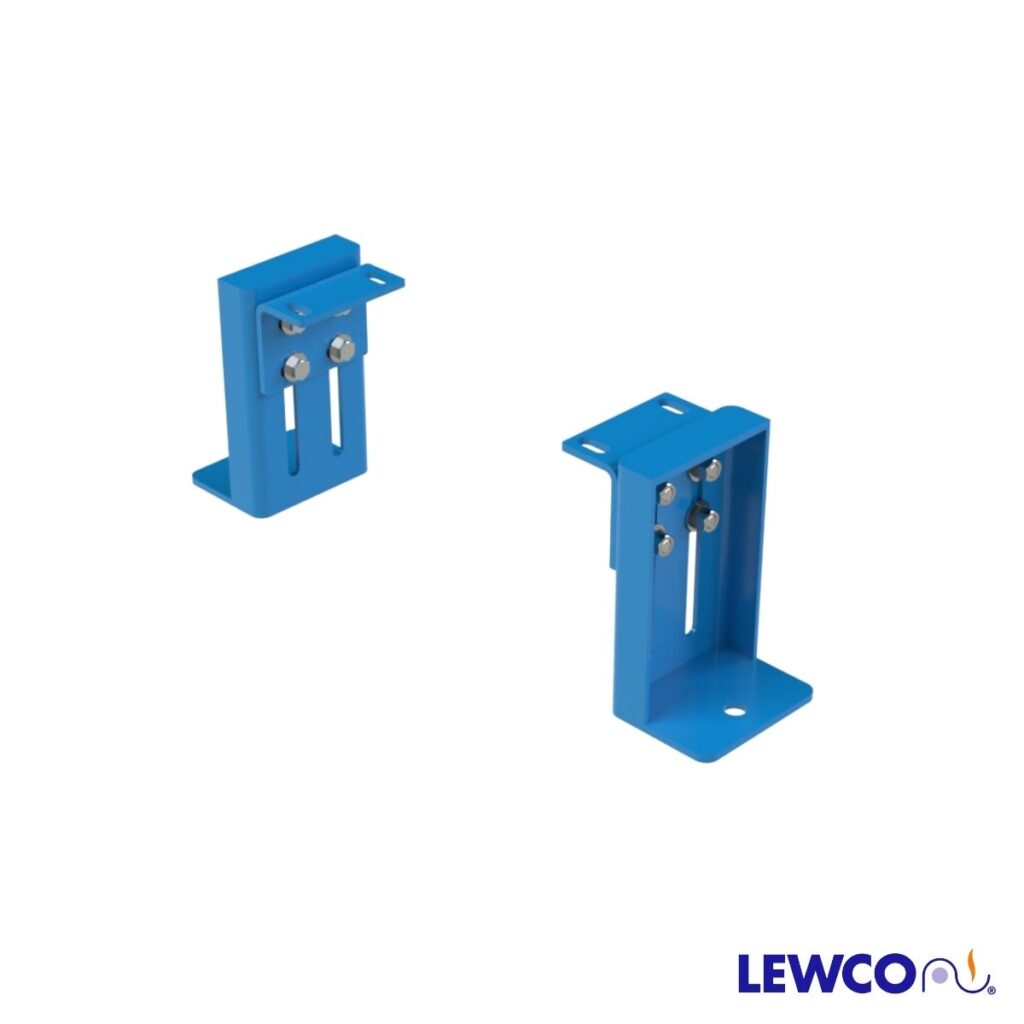

SPLH model heavy duty, stationary, low profile supports are easily adjusted and anchored. These supports are ideal for applications that require the conveyor to sit low to the floor.
SPLH SPECIFICATIONS
| SPLH: HEIGHT RANGE | ||
| MODEL | MIN | MAX |
| CONDITION “A” | 0.58″ | 4.00″ |
| CONDITION “B” | 3.50″ | 7.00″ |
CONSTRUCTION: Formed steel foot angle, 4ga.
TOP PLATE: Standard 4ga fixed top plate.
SUPPORT COLOR: OSHA safety blue powder (RAL 5017). All guarding is yellow (RAL 1023) and moving parts are bright red orange (RAL 2008). Optional colors available.
*SPLH are supplied in pairs*
