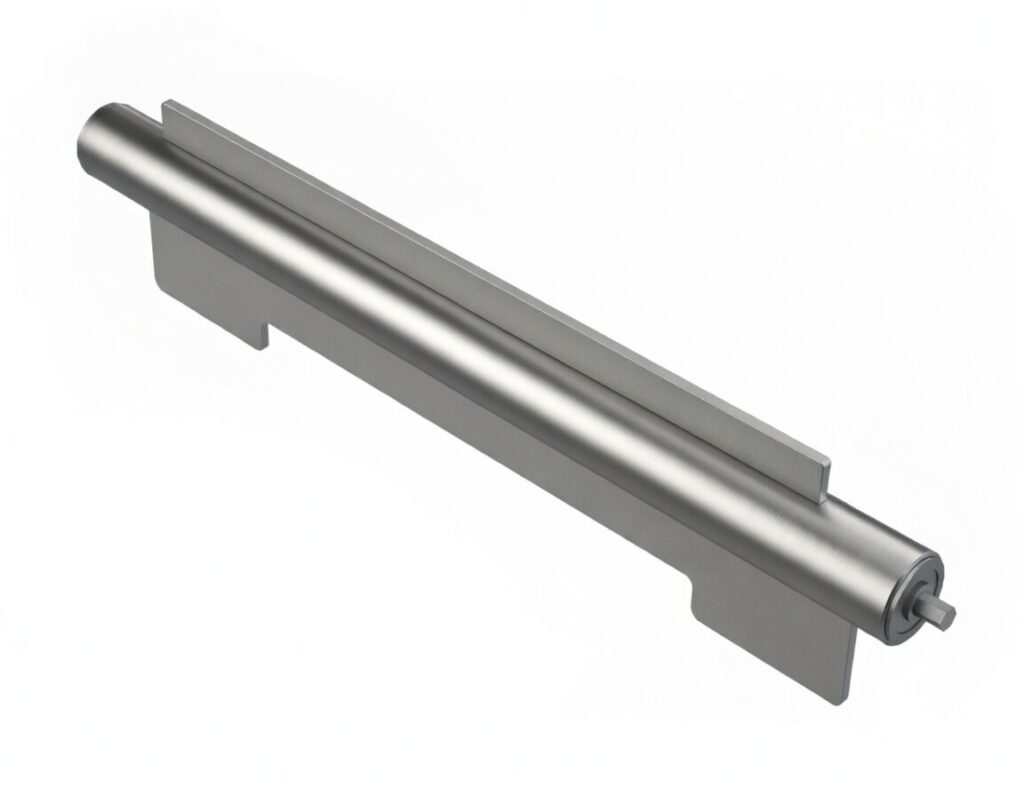

Anti-backup rollers allow product to be pushed onto the conveyor one-way but does not allow product to be pushed back the other way. The design features a roller that has a bar welded to two sides 180 degrees apart. On the bottom side, the flat bar is larger to act as a counterweight. (2) Brackets are included that can be mounted to the conveyor frame to act as a stop for the counterweight to hit. Field drilling may be required.
AVAILABLE ROLLER SIZES:
1.9” dia. x 16 ga. wall, 7/16” hex axle
1.9” dia. x 12 ga. wall, 7/16” hex axle
1.9” dia. x 9 ga. wall, 7/16” hex axle
2.5” dia. x 11 ga. wall, 11/16” hex axle
2.6” dia. x 7 ga. wall, 11/16” hex axle
3.5” dia. x 0.30” wall, 1” hex axle
ROLLER TUBE & FINISH: Bare Carbon Steel. Optional bright red orange (RAL 2008) paint.
