Used to support multiple levels of conveyor over the top of one another. The support crossmember allows for various widths of conveyor, or side by side lanes, too. Used in level or very near level installations.

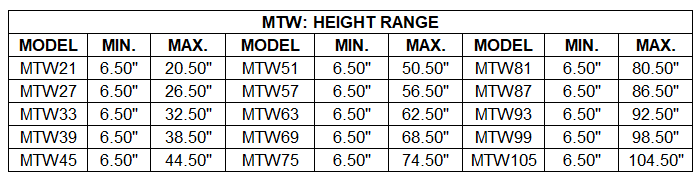

OVERALL HEIGHT: 21″, 27″, 33″, 39″, 45″, 51″, 57″, 63″, 69″, 75″, 81″, 87″, 93″, 99″, 105″
BETWEEN UPRIGHT: 13″ – 60″
NUMBER OF TIERS: 1, 2, 3, 4, 5
CONSTRUCTION: Formed upright channels, 8ga; Bolted angle crosstie, 12ga; Base plate, 4ga.
TOP PLATE: Standard 8ga pivot top plate is available where adjustable pitch is required.
SUPPORT COLOR: OSHA safety blue powder (RAL 5017). All guarding is yellow (RAL 1023) and moving parts are bright red orange (RAL 2008). Optional colors available.
