Used to support multiple levels of conveyor mounted over the top of one another (stacked). The support crossmember allows for various widths of conveyor, or side by side lane, too. Used in level or very near level installations.

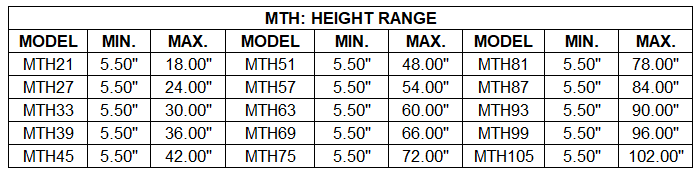

OVERALL HEIGHT: 21″, 27″, 33″, 39″, 45″, 51″, 57″, 63″, 69″, 75″, 81″, 87″, 93″, 99″, 105″
BETWEEN UPRIGHT: 10″ – 64″
NUMBER OF TIERS: 1, 2, 3, 4, 5
CONSTRUCTION: Formed upright channels, 8ga; Welded channel crosstie, 12ga bolted assembly; Base plate, 4ga.
FINISH: Standard finish is OSHA safety blue powder. Optional colors include
green, beige, gray, orange, black and yellow.
