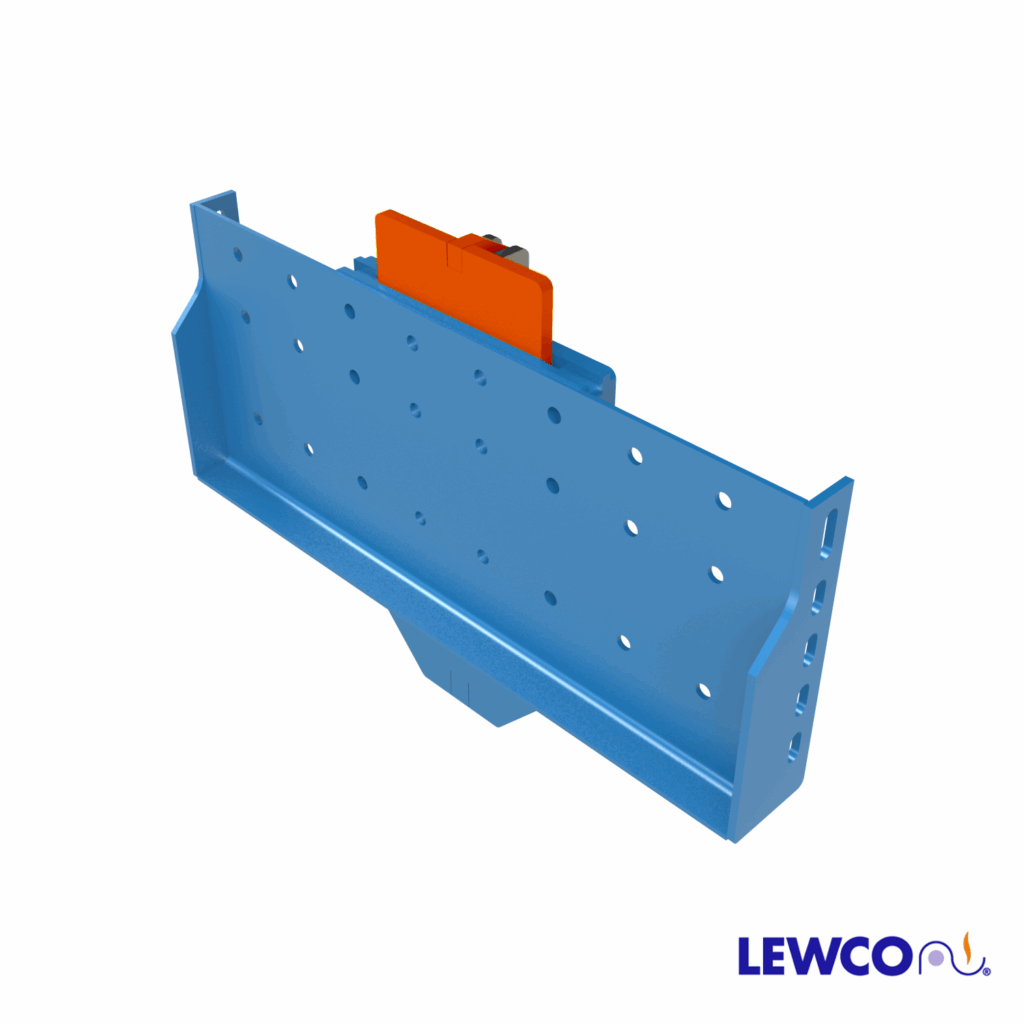

PUBS1 pop up blade stop can be used to hold product on a gravity conveyor line prior to a work area. It can also be used with an RB or RBB roller brake as part of an escapement mechanism.

BETWEEN FRAMES: 10″ – 23″
MOUNTING: Escapement frame bolts on to webs of conveyor frame.
BLADE STOP: 3/8″ plate connected to air cylinder.
OPERATION: Extending the cylinder engages the escapement stop.
CYLINDER: Double acting 2″ bore x 2″ stroke pneumatic cylinder.
AIR REQUIREMENTS: Standard requires 30-40psi of clean, filtered, regulated air
at consumption of approximately 0.005 cubic feet per cycle. Optional valve and
filter/regulator/lubricator available. NOTE: Pressure loss can occur over extended periods with no use.
COLOR: Bright red orange (RAL 2008) per OSHA safety stands of moving parts.
