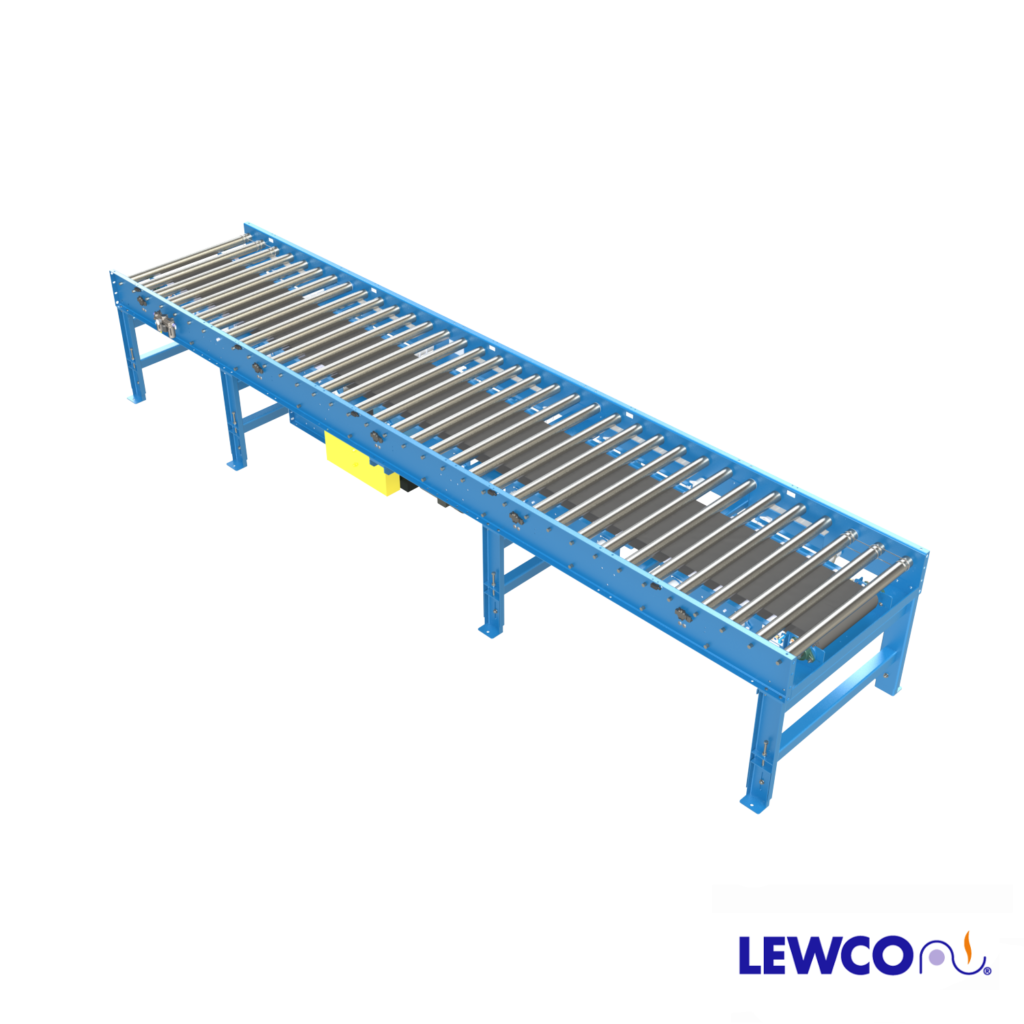

Model ZPLR25 is a heavy duty, zero pressure accumulation conveyor which can provide accumulation of heavier loads with no back pressure. These units come equipped with zone control logic with easy set-up for cascade or slug release modes.
BETWEEN FRAMES: 15″ – 57″
LENGTH: 72″ – 960″
BEGINNING ELEVATION: 12″ – 108″
ENDING ELEVATION: 12″ – 108″
SPEED: 10 – 120 FPM
ROLLER CENTERS: 3″, 4″, 6″
ROLLERS: ZPLR25 Roller – 2.50″ diameter, 11ga wall tubes. ZPLR26 Roller – 2.625″ diameter, 7ga wall tubes. All rollers with 11/16″ hex cold rolled steel axles, spring retained. Standard bearings are precision, grease packed bearings.
BELT: Standard belt is Trackmate PVC120 with clipper lace.
DRIVE: Standard drive is end, right hand side. Optional drives include End drive left hand side or Center drive right hand side
MOTOR: 1/2 HP through 1-1/2 HP. Energy efficient and inverter duty motors also available. Voltages include 115/1/60, 208/3/60, 230/3/60, 460/3/60 and 575/3/60 & DC Voltage.
ROLLER SURFACE: Standard roller surface is carbon steel. Optional surface for 2.5″ rollers includes galvanized roller tube.
SUPPORT CENTERS: Standard supports are floor supports on 10’ centers. Optional supports on 5’ centers. Ceiling supports are also available.
FRAME FINISH: Standard finish is OSHA safety blue powder. Optional colors include green, beige, gray, orange, black and yellow.
ACCUMULATION ZONES: Zone length is a multiple of roller center.
Recommended zone length is 12″ longer than longest product length. Standard zone logic is for cascading accumulation.
TREAD ROLLER BRAKE: Friction type brake is actuated automatically with zone actuation to prevent coasting of product in the accumulation zones.
AIR REQUIREMENTS: Requires 40PSI air pressure of clean, filtered air at consumption of approximately 0.05 cubic feet per sensor actuation.
FILTER REGULATOR: Supplied for main air supply at input, 3/8″ NPT port.
POWER SUPPLY: Includes 24 VDC power supply located near center of conveyor and capable of supplying power for up to 50 zones.
