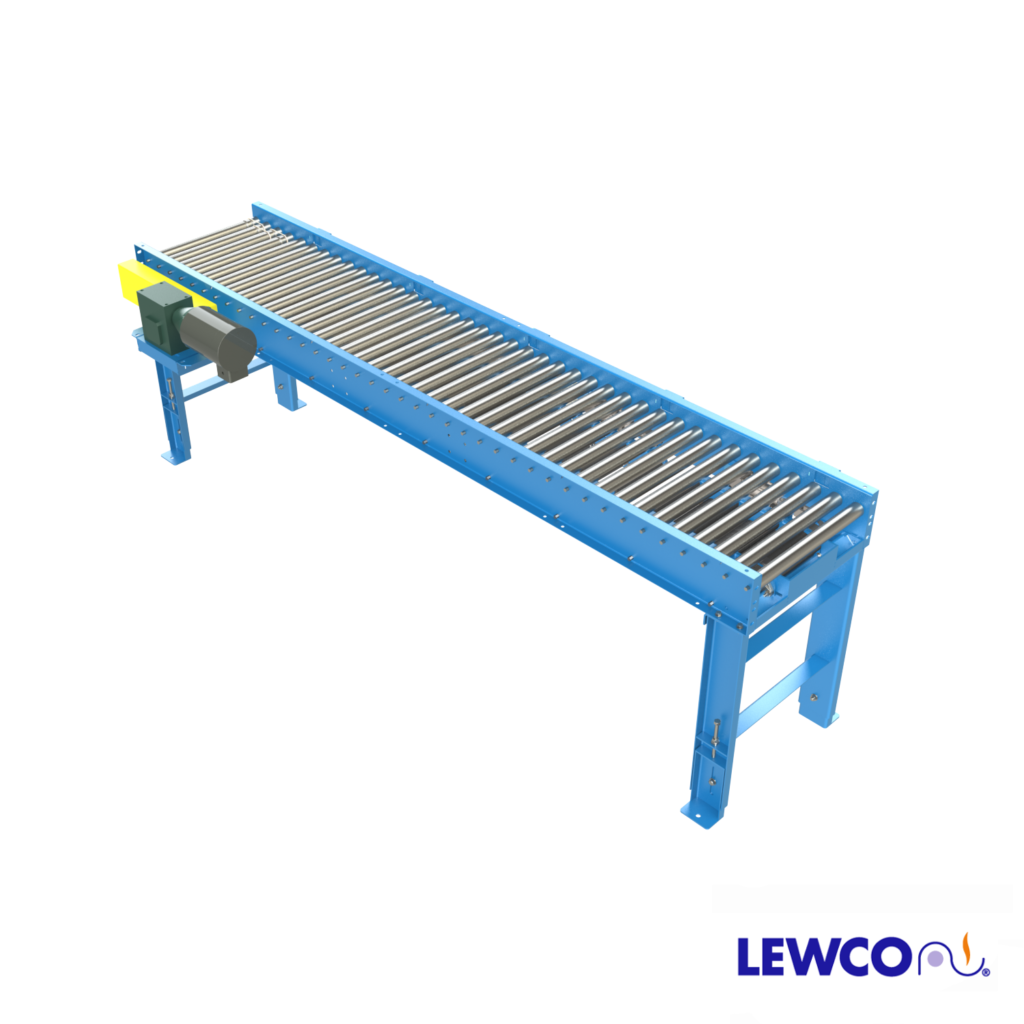

Model ZPLR19 is a medium duty, zero pressure accumulation conveyor which can provide accumulation of light to medium weight loads with no back pressure. These units come equipped with zone control logic with easy set-up for cascade or slug release modes .

ZPLR19 – ZERO PRESSURE BELT DRIVEN ROLLER WITH 1.90″ DIAMETER ROLLERS

BETWEEN FRAMES: 15″ – 39″

LENGTH: 72″ – 840″

BEGINNING ELEVATION: 12″ – 60″

ENDING ELEVATION: 12″ – 60″

SPEED: 10 – 120 FPM

ROLLER CENTERS: 3″, 4″, 6″

ROLLERS: Standard rollers are 1.9″ diameter with 7/16″ hex cold rolled steel axles, spring retained, grease packed bearings. 1916 roller has 16ga wall tube, precision bearings. 1912 roller has 12ga wall tube, precision bearings. 1909 roller has 9ga wall tube, semi-precision bearings.

BELT: Standard belt is Trackmate 120 EMB with clipper lace.

DRIVE: Standard drive is end, right hand side. Optional drives include End drive left hand side or Center drive right hand side

MOTOR: 1/2 HP through 1-1/2 HP. Energy efficient and inverter duty motors also available. Voltages include 115/1/60, 208/3/60, 230/3/60, 460/3/60 and 575/3/60 & DC Voltage.

ROLLER SURFACE: Standard roller surface is carbon steel. Optional galvanized surface for 1912 and 1916 rollers.

SUPPORT CENTERS: Standard supports are floor supports on 10’ centers. Optional supports on 5’ centers. Ceiling supports are also available.

FRAME FINISH: Standard finish is OSHA safety blue powder. Optional colors include green, beige, gray, orange, black and yellow.

ACCUMULATION ZONES: Zone length is a multiple of roller center. Recommended zone length is 12″ longer than longest product length. Standard zone logic is for cascading accumulation.

TREAD ROLLER BRAKE: Friction type brake is actuated automatically with zone actuation to prevent coasting of product in the accumulation zones.

AIR REQUIREMENTS: Requires 40PSI air pressure of clean, filtered air at consumption of approximately 0.05 cubic feet per sensor actuation.

FILTER REGULATOR: Supplied for main air supply at input, 3/8″ NPT port.

POWER SUPPLY: Includes 24 VDC power supply located near center of conveyor and capable of supplying power for up to 50 zones.
